A Guide to LED Wall Pack Light Installation Height and Coverage

When it comes to outdoor lighting, LED wall pack lights are a popular choice for their energy efficiency, durability, and versatility. However, to maximize their effectiveness, proper installation height and coverage are critical. Whether you’re illuminating a parking lot, warehouse, or building facade, understanding these factors ensures safety, security, and optimal performance. Here’s what you need to know.

Why Installation Height Matters

The installation height of an outdoor wall pack light directly impacts its illumination range, brightness distribution, and energy efficiency. Installing a fixture too high or too low can lead to uneven lighting, dark spots, or excessive glare. Here’s a breakdown of recommended heights for different scenarios:

1. Commercial and Industrial Spaces

   • For large areas like parking lots, loading docks, or warehouses, mount LED wall pack lights between 15 to 25 feet above the ground.
   • This height ensures wide coverage while maintaining adequate brightness for safety and visibility.
   • High-mounted fixtures also reduce the risk of vandalism and physical damage.

2. Residential and Small-Scale Applications

   • For homes, apartment complexes, or pathways, a lower height of 8 to 12 feet is ideal.
   • This placement provides focused illumination for entrances, walkways, or gardens without overwhelming the space with harsh light.

3. Building Facades and Architectural Lighting

   • To highlight architectural features, install fixtures at 10 to 15 feet to balance coverage and aesthetics.
   • Use adjustable-beam LED wall pack lights to direct light precisely where needed.

Understanding Coverage Range

The coverage area of an LED wall pack light depends on three key factors: beam angle, lumen output, and installation height. Here’s how to calculate and optimize coverage:

1. Beam Angle

   • Narrow beam angles (e.g., 60°–90°) focus light downward, ideal for pathways or building perimeters.
   • Wide beam angles (e.g., 120°–180°) spread light broadly, perfect for parking lots or large outdoor spaces.
   • Many commercial wall pack light fixtures offer adjustable optics to customize beam patterns.

2. Lumen Output

   • Higher lumen ratings (e.g., 10,000–20,000 lumens) are suited for high-ceiling industrial areas.
   • Lower outputs (e.g., 4,000–8,000 lumens) work well for residential or small commercial zones.
   • Match lumen output to the installation height—higher fixtures require brighter lights to compensate for light diffusion.

3. Coverage Formula
   A simple rule of thumb:

   • Coverage Diameter ≈ 2 × Installation Height
     For example, a fixture mounted at 15 feet will illuminate a circular area roughly 30 feet in diameter.

Avoiding Common Pitfalls

• Light Trespass: Ensure fixtures are angled downward to prevent light from spilling into neighboring properties.
• Glare: Use shielded or frosted lenses to minimize glare, especially in residential areas.
• Environmental Factors: For LED wall pack lights with photocell, ensure the sensor isn’t obstructed by nearby structures or foliage.

Case Study: Perfecting Installation

Imagine a retail store with a 20-foot wall. Installing a 120° beam-angle LED wall pack light at 18 feet high would cover a 36-foot diameter area. Pairing this with a photocell sensor ensures the light operates only at night, saving energy while maintaining security.

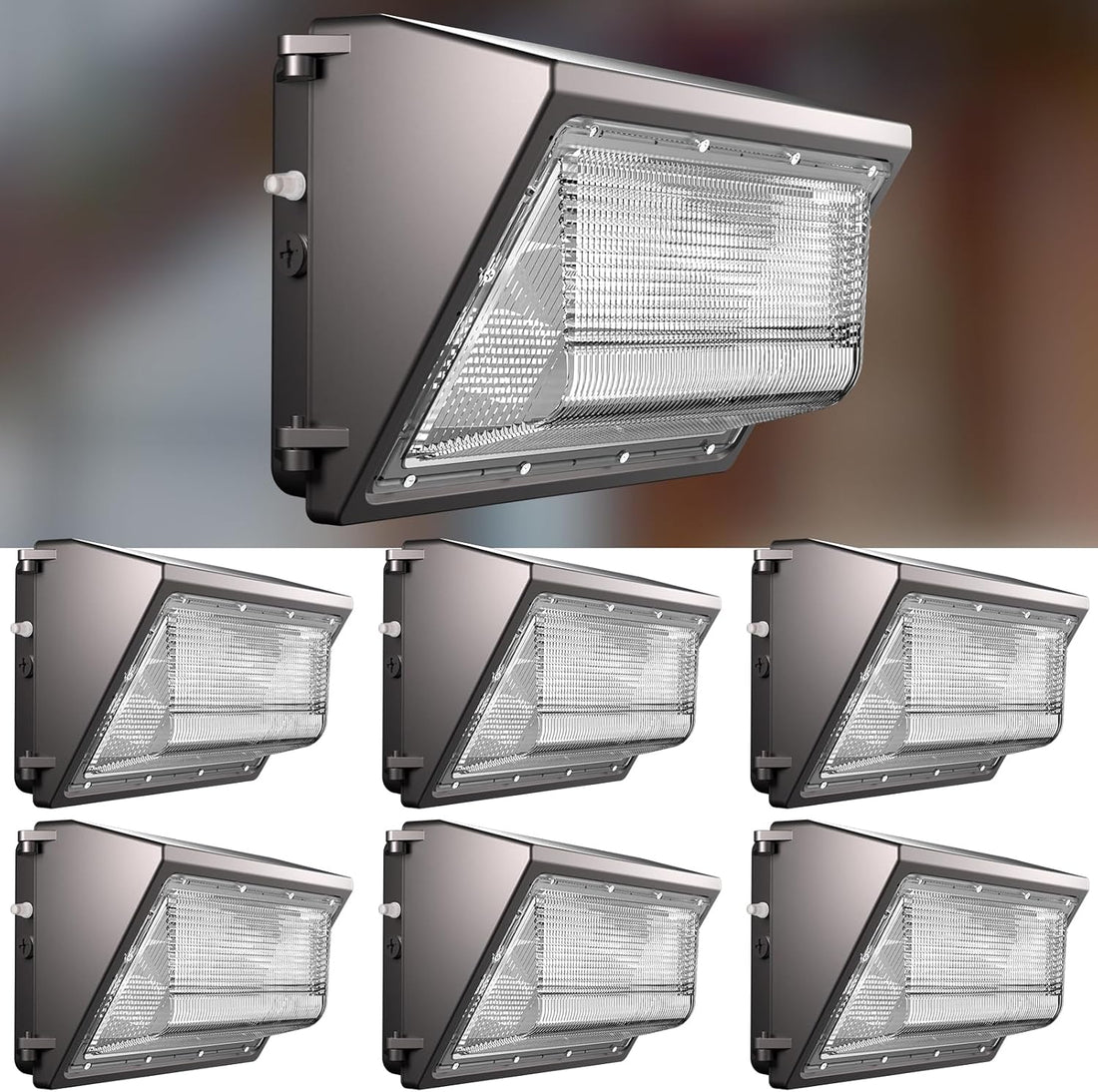

Lightdot LED Wall Pack Light 150W-250W installation height and coverage for your reference.

150W 10-20ft @Dia 40ft

200W 15-30ft@Dia 60ft

250W 20-40ft@Dia 80ft
